Pilot Drill Bits For 2lbin, AP Smith and IPSCO Hot Tapping Machines

Pilot Drills, Drill Shafts, Spaid Insert Tips, Pilot Drill Tips

1/4" x 4" Pilot Drill Bits with Retainer Wires
(2- retainer wire holes– OAL 4” - Flute length 1 1/2”)
Compatible with our LJ1-25, T1-2, T1-M and T1-4

Retention Wire Installation Video

1/4” Pilot Drill x 4”
Specs
Item #
Price
1/4" x 4" Pilot Drill
T1P-1402-RRW
$ 18.95
Wire diameter  .039 = .991 mm
Qty:

1/4" Pilot Drill Bit Retainer Wire .039 or .991mm Thickness
Retention Wire Installation Video
3-feet of spring wire diameter .039 = .991 mm
Specs
Item #
Price
3-feet of spring wire diameter  .039 = .991 mm
T1P-.039-wire
$10.00
Qty:

3/8" x 4" Pilot Drill Bits with Retainer Wires
(2- retainer wire holes - Flute length 1 3/4”)
Compatible with our LJ1-25, T1-2, T1-M and T1-4 Hot Tapping Machines

Retention Wire Installation Video
3/8” Pilot Drill x 4” or x 5”
Specs
Item #
Price
3/8" x 4" Pilot Drill
TIP-3840-RRW
$ 46.95
3/8" x 5" Pilot Drill
TIP-3850-RRW
$ 48.95
Wire diameter  .051 = 1.295 mm
Qty: Lengths:

3/8" Pilot Drill Bit Retainer Wire .051 or 1.295 mm Thickness
Retention Wire Installation Video
3-feet of spring wire diameter .051 or 1.295mm
Specs
Item #
Price
3-feet of spring wire diameter  .051 or 1.295mm
T1P-.051-wire
$12.00
Qty:

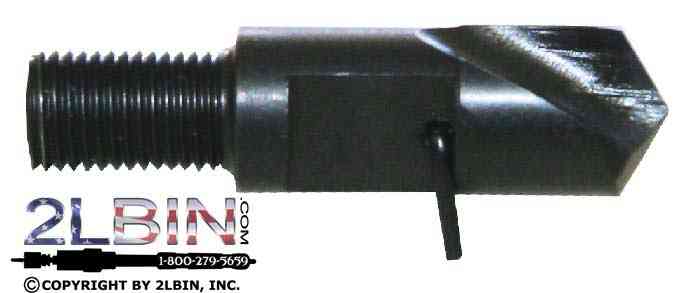

3/8" Pilot Drill Insert Tip Threaded for M-type Boring Bar
(1- retainer wire – L 1 1/4” - Flute length 3/4”)
Compatible with our HP-104 and HP-106 Hot Tapping Machines
3/8 Insert Bit
Specs
Item #
Price
3/8" Insert Bit
T1P-0540-RRW
$ 120.95
Wire diameter  .051 = 1.295 mm
Qty:

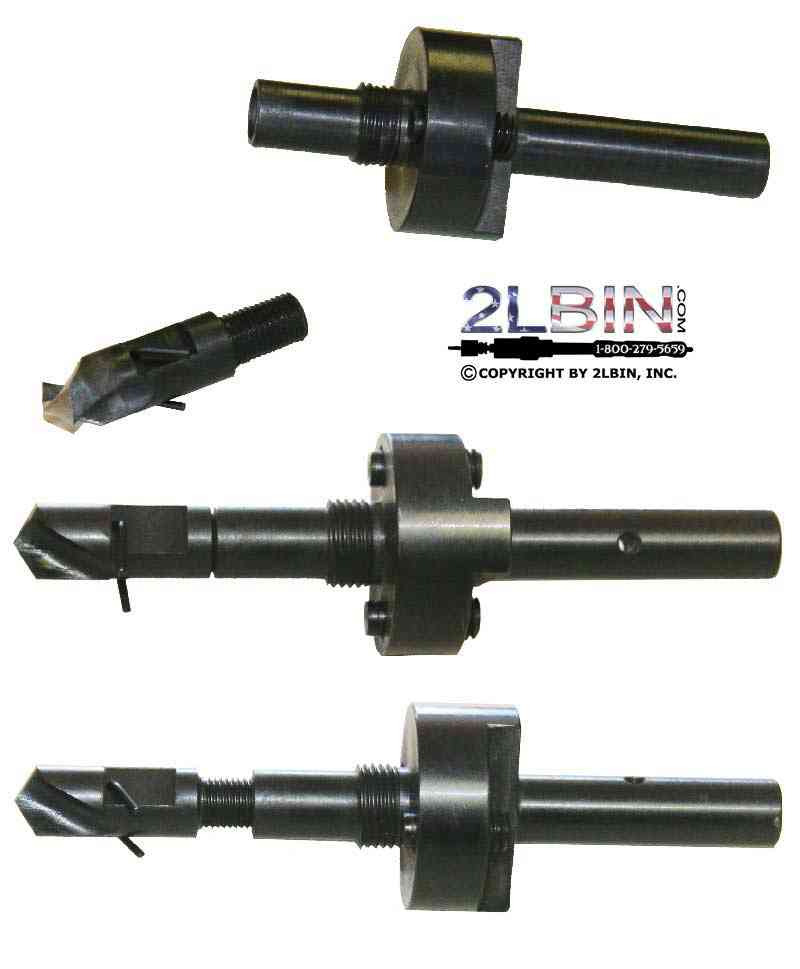

Hole Saw Pilot Drill Shaft and Bit
(1- retainer wire – L 1 1/4” - Flute length 3/4”)
Compatible for our HP-104 and HP-106 Hot Tapping Machines
Hole Saw Pilot Drill Shaft and Bit
Specs
Item #
Price
2" Shaft and Bit
2-HSPD-106
$ 335.00
4" Shaft and Bit
4-HSPD-106
$ 345.00
6" Shaft and Bit
6-HSPD-106
$ 365.00
Qty: Lengths:

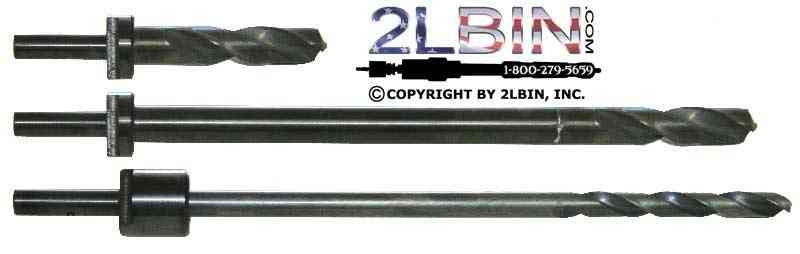

Hole Saw Solid Pilot Drill Bits
(1- retainer wire – L 1 1/4” - Flute length 3/4”)
Compatible for our HP-104 and HP-106 Hot Tapping Machines
Hole Saw Solid Pilot Drill Bits
22inch High Pressure Solid Pilot Drill Bits
Specs
Item #
Price
9 1/2” Drilling Travel
1/2"x 9 1/2" Solid Drill HP-1/2x91/2SD $ 290.00
6” Long  - Drilling Travel same as Machine Capability

1 1/8"x 6" Solid Drill HP-1-1/8x6SD $ 341.00
1 3/8"x 6" Solid Drill HP-1-3/8x6SD $ 425.00
16” Drilling Travel
11/16"x 19" Solid Drill HP-11/16x19SD $ 570.00
7/8"x 19" Solid Drill HP-7/8x19SD $ 680.00
1/2"x 19" Solid Drill HP-1/2x19SD $ 520.00
Qty: Lengths:

D-Clips for High Pressure Hottap Machines
Compatible for our HP-104 and HP-106 Hot Tapping Machines
  D CLIPS FOR HIGH PRESSURE MACHINES D CLIPS
Specs
Item #
Price
3 x D-Clips
HP-Dclip
$ 18.95
Qty:

Pilot Drill Shafts with Retainer Wire
(1- retainer wire – L 1 1/4” - Flute length 3/4”)
Compatible with our T-24E, T-30H, T-37H Hot Tapping Machines
Pilot Drill Shafts with Insert Tips
Specs
Item #
Price
3"-6"-8"
T2P-3080-RRW
 $ 512.00
10"-12"
T2P-1012-RRW
$ 622.00
14"-16"
T2P-1416-RRW
$ 730.00
Qty: Lengths:


2LBin Spaid Insert Tips
Compatible for our T-24, T-30 and T-37 Tapping Machines
( 3" - 12" ) Pilot Drills
Spade Inserts for Pilot Drills
Specs Item # Price
1 1/32" Tip T2T-3012-RRW $ 69.95
Qty:

A P Smith Pilot Drills Shafts with Retaining Wires
(1 1/4” Dia.Shaft w/retainer wires)
Compatible with S-25, S-37 Hot Tapping Machines
A P Smith Pilot Drills Shafts and Bit
Specs
Item #
Price
3"-6"-8"
APS-3080-RRW
 $ 612.00
10"-12"
APS-1012-RRW
$ 680.00
14"-16"
APS-1416-RRW
$ 780.00
Qty: Lengths:

AP Smith Spaid Insert Tips: S-25, S-37
Compatible for AP Smith Hot Tapping Machines
( 3" - 16" ) Pilot Drills
Spade Inserts for Pilot Drills    Spade Inserts for Pilot Drills in action
Specs Item # Price
1 1/4" Tip APS-3016-RRW   $ 79.95
Qty:

IPSCO Style Pilot Drills with Retaining Wires

IPSCO pilot drill
Call 1-800-279-5659 for pricing and other information.

IPSCO Pilot Drills
Call 1-800-279-5659 for pricing and other information.

IPSCO Pilot Drills 2
Call 1-800-279-5659 for pricing and other information.



Pilot drills for 2LBin, A.P. Smith, and other machines upon request. Available in hot tapping & line stopping lengths.
